You found the right part at the right price. Then it shows up in the wrong packaging — and your pick-and-place machine can't load it.

It's one of the most common sourcing mistakes we see — and the most avoidable.

The Four Standard Packaging Types

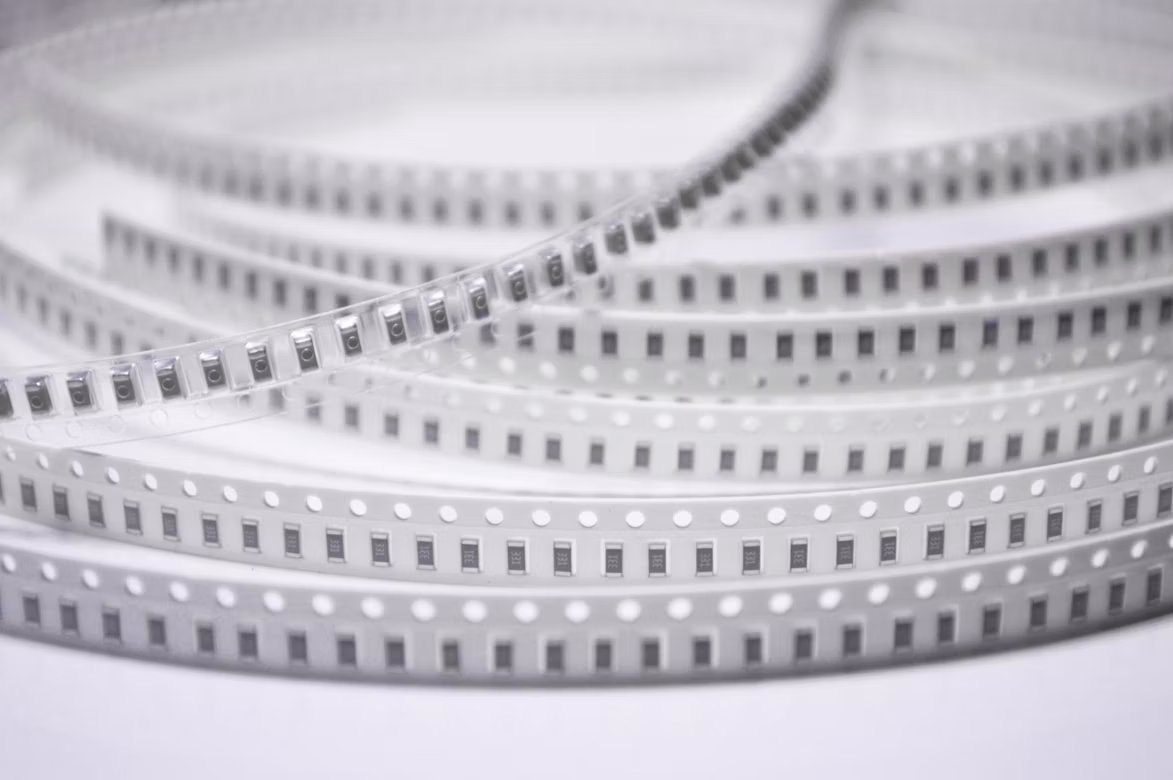

Tape and Reel (T&R)

Best for: Automated SMT assembly

Formats: 8mm, 12mm, 16mm, 24mm carrier tape

Standard quantities: 2000-5000pcs (0603/0805), 1000-2500pcs (SOIC), 500-1000pcs (QFP/QFN)

Key specs to verify:

• Pitch (4mm for 0603/0805, 8mm for SOIC-8, 12mm for SOIC-16)
• Reel diameter (7"/178mm or 13"/330mm)
• Leader/trailer length
• Moisture barrier bag (MSL-rated components)

Check these against your feeder before ordering.

Note: Reeled components cost 5-10% less than cut tape or tube — large reel = best value.

Tube / Stick Packaging

Best for: Through-hole and larger SMD ICs

Materials: Anti-static PVC or aluminum

Quantities: 15-50pcs per tube (varies by package)

The catch is feeder compatibility.

Watch for:

• Tube color matters (conductive pink vs dissipative black)
• Not all tube formats fit every feeder system
• Some legacy tube designs don't transport well for certain DIP packages

Tray Packaging

Best for: Fine-pitch QFP, BGA, QFN (delicate packages)

Materials: Anti-static conductive plastic

Quantities: Typically 100-400pcs per tray (JEDEC standard)

Broken vacuum seal? Treat the parts as suspect.

Buyers note:

• BGA trays require careful ESD handling
• Improper vacuum sealing causes moisture absorption
• Tray dimensions must match your feeder or you'll need manual loading

Bulk / Cut Tape / Loose Parts

Best for: Prototyping, repair, low-volume production

Cost premium: 15-30% more than full reel

We use it for prototypes and bridges — nothing more.

Only use when:

• You need <500pcs of a part normally reeled at 3000
• Engineering samples and prototyping
• Emergency bridge quantities

Moisture Sensitivity (MSL)

Components graded MSL 2-5a absorb moisture and can be damaged ("popcorn effect") during reflow if not properly baked before assembly. We've seen that damage end a reflow run — the part looks fine from the outside, and it isn't.

MSL handling:

Chinese Packaging Alternatives

Chinese manufacturers often use non-standard packaging formats or smaller reels.

Repackaging from bulk happens more than buyers assume — worth asking every time.

What to check before ordering:

• Ask for packing specification before purchase
• Verify tape width and pitch against your feeder spec
• Request photo of actual packaging for first order
• For independent distributors, ask if they repackage from bulk

Cost Comparison

Full reel wins on price and speed.
